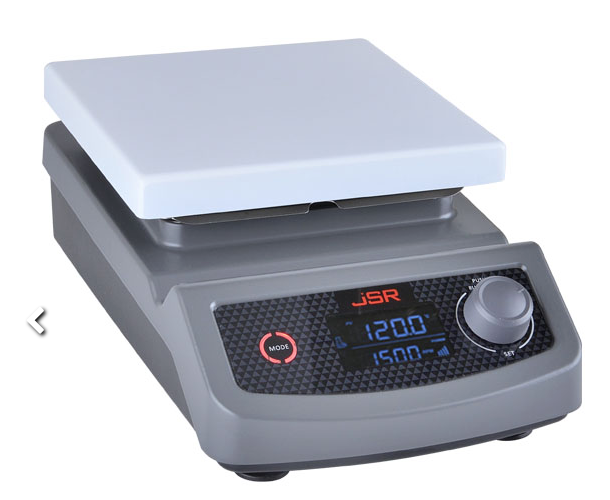

Isıtıcılı Manyetik Karıştırıcı
Dijital Isıtıcılı Manyetik Karıştırıcı
- Max. Çalışma Sıcaklığı 400°C
- Max.Karıştırma Hızı 1500 rpm
- Dijital Fuzzy Kontrol
Hotplate Dims. |
: 180 x 180 mm |
Temp. Range |
: Max. 400 oC |
Temp. Accuracy |
: ± 0.3 oC at 200.0 oC |
Stirring Speed |
: 80 ~ 1500 rpm |
Speed Resolution |
: 5 rpm |
Control |
: Digital Fuzzy Control with Timer |
Safety |
: Over-Temperature Cut-Off |
|
: Over Current Cut-Off |
Material |
: Hotplate – Aluminum /w Ceramic Coating |
|
: Body – Aluminum Casting /w Epoxy Powder Coating |
Electric |
: 230±10% VAC 50/60Hz 1-Phase |
Plug config. |
: CEE 7/7 Schuko |
Models
Art. No. |
|
Dimension Data |
(W x D x H mm) |
Plate Dims. |
180 x 180 mm |
Overall Dims. |
180 x 330 x 110 mm |
Performance Data |
|
Temp. Range |
Max. 400℃ |
Accuracy |
±0.3℃ at +200℃ |
Resolution (Display) |
0.1℃ |
Resolution (Control) |
0.5℃ |
|
|
Speed Range |
80 ~ 1500 rpm |
Stirring Quantity (H2O) |
20 L |
Resolution |
5 rpm |
Usable Magnetic Bar |
Max. 50 mm in length |
Timer |
Max. 99 hr 59 min |
|
|
Controller |
|
|
Digital Fuzzy Control with Capacitive Touch Button and Jog Dial |
|
Full Size Digital Back Light LCD Display |
|
Independent ON/OFF Switch |
|
|
Heater and Motor |
|
Heating Output |
600 Watt |
Temp. Sensor |
CA Type Embedded Sensor |
Motor |
Brushless Shade Motor |
|
|
Safety Data |
|
Safety Device |
Over Temp. Cut-Off |
|
Over Current Cut-Off |
|
|
Material Data |
|
Top Plate |
Aluminum with ceramic coating |
Body |
Aluminum casting with epoxy powder coating |
Base |
Engineering Plastic |
|
|
Electrical Data |
|
Rated voltage |
230 ± 10% VAC |
Power frequency |
50 / 60Hz |
Nominal power |
620 Watt 3.0 amp |
Phase |
1 Phase |
Plug configuration |
CEE 7/7 Schuko or BS 1363 |
|
|
Usable Condition |
|
Temp. & Humidity |
5oC - 40 oC, < 80% RH |
|
|
Packaging Data |
|
Shipping Dims. (W x D x H mm ) |
280 x 460 x 170 mm |
Type of packaging |
Carton |
Net Weight |
3.0 kg |
Shipping Weight |
3.9 kg
|
